Screw Fix Genuine Multipoint Gearbox – Lift Lever

SKU: DF-KFVCASE25NEW Category: Multipoint Gearboxes Brand: KFV

Price range: £158.00 through £184.00

Manufacturer: KFV
Backset: 25mm, 30mm, 35mm, 40mm or 45mm – How do I measure the backset?
Centres PZ: 92mm – How do I measure the centres?
Case Height: 210mm
Case Width: Backset + 18mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt
Spindle: Single 8mm
Operation: Lift Lever – What is the operation?
Packaging: Supplied in singles

Backset

Clear

KFV multipoint door lock gearboxes are single spindle and 92mm centres.

KFV cases are riveted onto strips and need to be drilled and then re-riveted. These cases will only replace newer KFV locks as older versions have different connectors.

The overall height of the gearbox is 210mm, the bolt throws 21mm and the distance from the bottom of the latch to the top of the deadbolt is 56mm. The distance from the spindle to the top of the case is 85mm but the gearbox has both a hole and a groove to accept bolt-through handle fixings.

Older KFV gearboxes are connected to the faceplate strip with 1/8″ rivets. There are very few other gearboxes which are fitted in this way (Winkhaus being another example) which can help with identification. However, new KFV locks have gearboxes screwed to the faceplate.

KFV locks are available as either a lift lever or key wind variants. It’s worth noting that it is not possible to swap a lift lever lock to a key wind gearbox or visa versa.

When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.

Early KFV models had different rivet spacing and used different connectors when attaching the gearbox to the strip. That’s not a problem when replacing the whole lock, but worth considering if only the gearbox needs replacing as the new gearbox will not replace very early models. Brand new locks have a gearbox that is attached to the faceplate with screws.

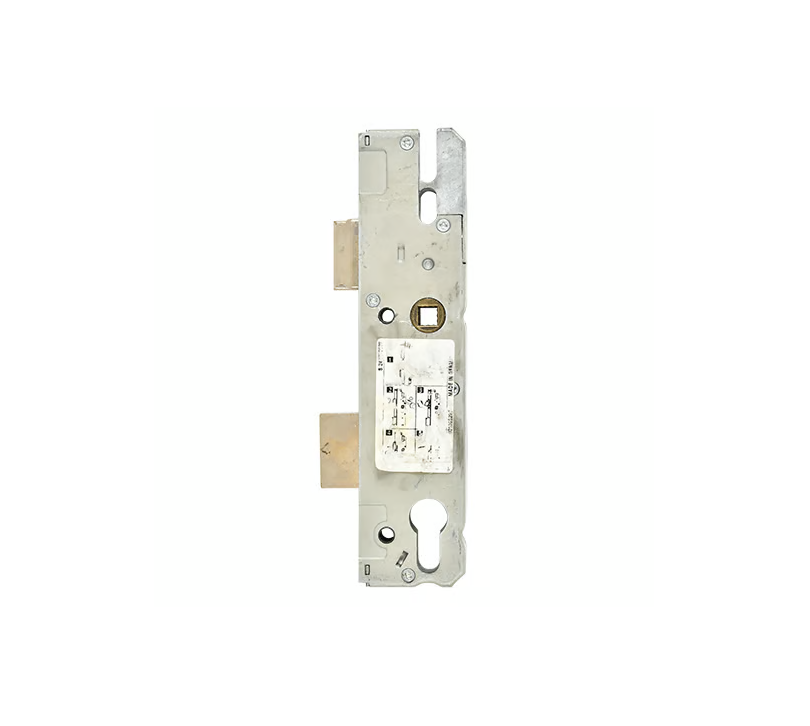

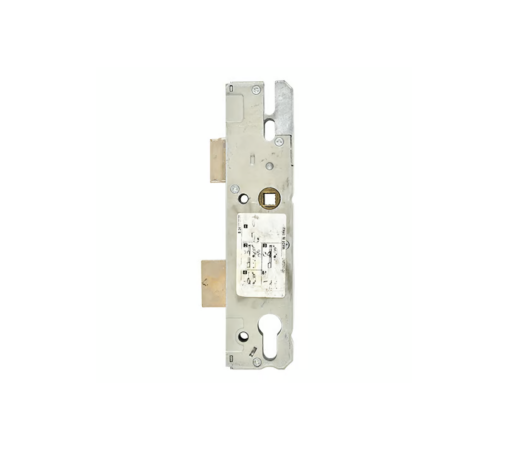

This is the new version of the KFV gearbox which is screwed onto the strip (older versions are riveted)

We stock a range of associated products for KFV Lever gearboxes, including multipoint door locks, keeps, spindles, handles and accessories.

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.
