Multipoint Gearbox – Lift Lever

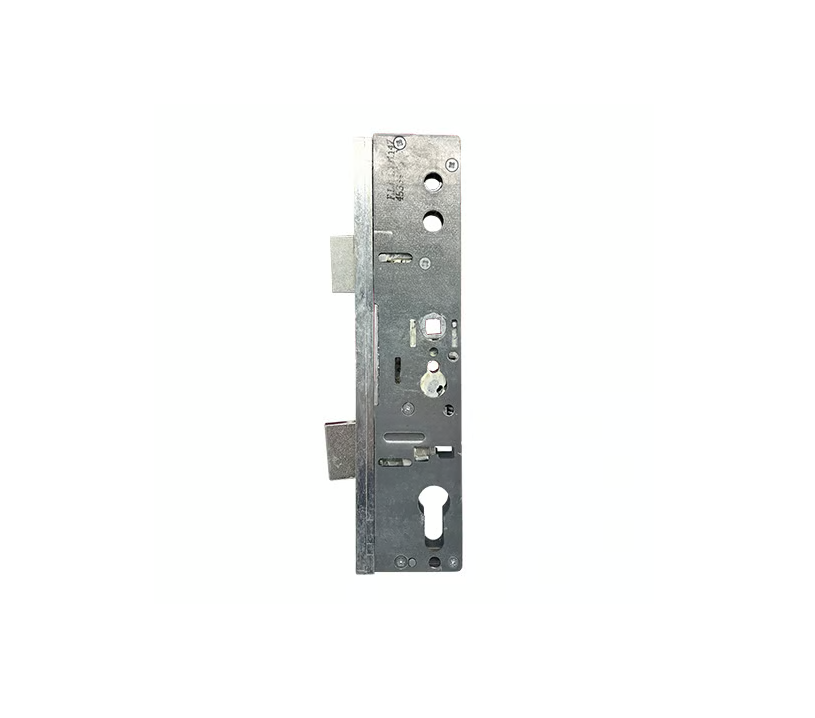

SKU: DF-APGBOX35S Category: Multipoint Gearboxes Brand: Apeer

£100^.00

Manufacturer: Apeer
Backset: 35mm or 45mm – How do I measure the backset?
Centres PZ: 92mm – How do I measure the centres?
Case Height: 228mm
Case Width: Backset + 16mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt
Spindle: Single 8mm
Operation: Lift Lever – What is the operation?
Packaging: Supplied in singles

Backset

Spindle

Centres PZ

Clear

Apeer gearboxes are available in 35mm or 45mm backset with a single spindle mechanism.

Single spindles are sprung and can only be used as a lift lever function.

Apeer gearboxes measure 228mm high by backset +15mm. The latch measures 30mm high, as does the deadbolt. There is 65mm between the bottom of the latch and the top of the deadbolt.

Gearboxes are fitted to faceplates with 3 screw holes. The top to middle screw hole measures 109mm and the middle to bottom also measures 109mm.

Earlier versions of these gearboxes also had a small spindle hole at the top of the case, near to the latch. This was used to hold the latch back.

Operation: Lift Lever

Latch reversal: Undo the screw in the latch to remove. Reverse and reinsert then replace screw.

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.
