Mark 1 Multipoint Gearbox – Lift Lever

SKU: DGSMK135 Category: Multipoint Gearboxes Brand: DGS, DSG

£118^.00

Manufacturer: DGS
Backset: 30mm ,35mm ,40mm or 45mm – How do I measure the backset?
Centres PZ: 92mm – How do I measure the centres?
Case Height: 208mm
Case Width: Backset + 19mm
Copy/Genuine: Copy
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt
Spindle: Single 8mm
Operation: Lift Lever – What is the operation?
Packaging: Supplied in singles

500 in stock (can be backordered)

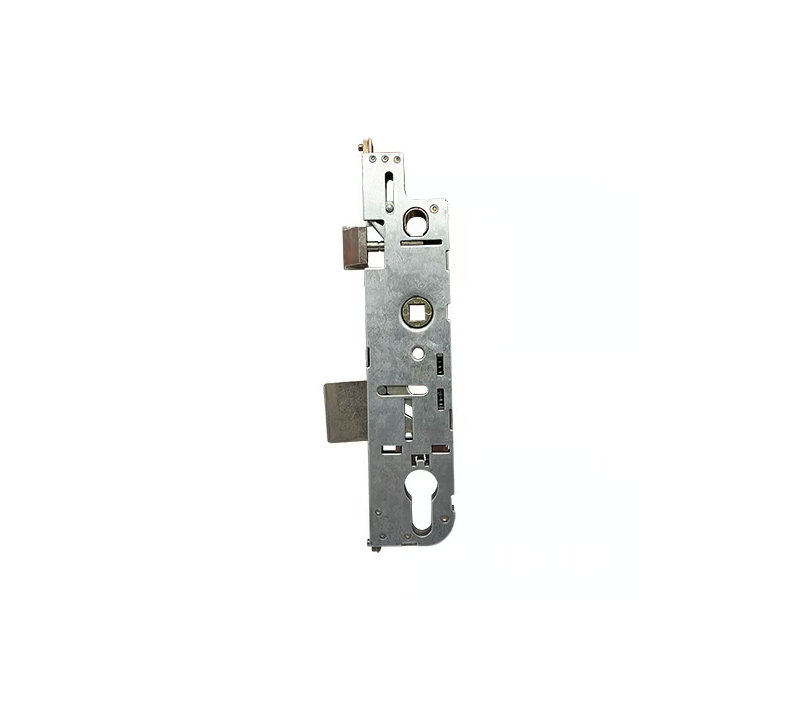

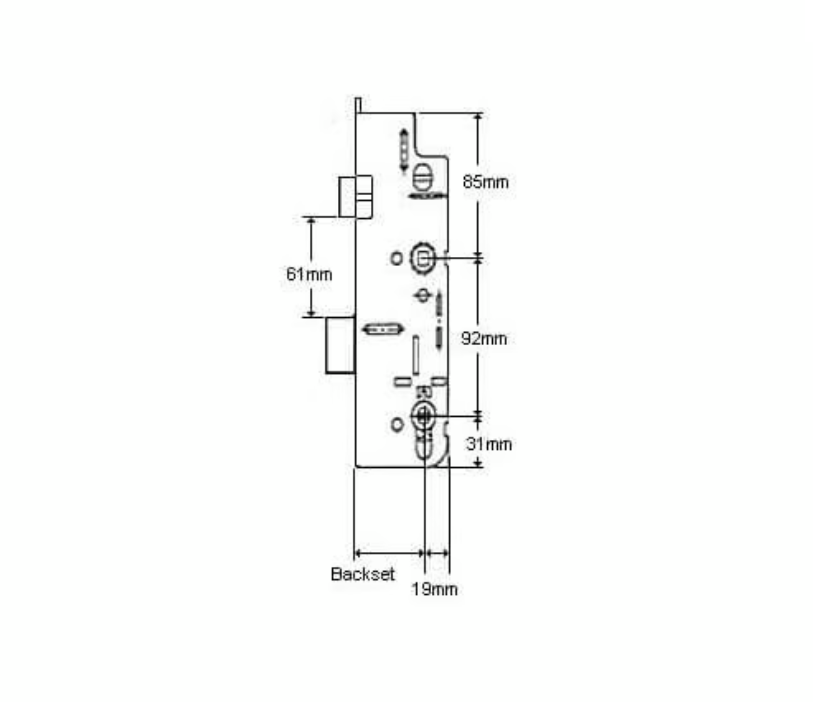

The DGS gearbox features a latch and deadbolt and measure 208mm high (excluding the fixing lugs) by the backset + 19mm wide.

The latch is 32mm high, the deadbolt measures 35mm high and there is a 54mm gap from the bottom of the latch to the top of the deadbolt.

DGS gearboxes are fixed to their faceplates with 3 screws. The distance from the top to the middle screw is 108mm, while the middle screw to the bottom screw is 92mm.

The follower is 8mm with the surround being thicker on the 30mm and thinner on the 35/45mm.

Always allow 2mm if measuring your backset with the gearbox removed from the faceplate.

These gearboxes are only available in a lift lever function with the split spindle and fast locking functions now obsolete, should you have either of these functions then a new style full length lock is required.

Operation: Lift lever

Latch reversal: Twist latch into the desired position

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.
