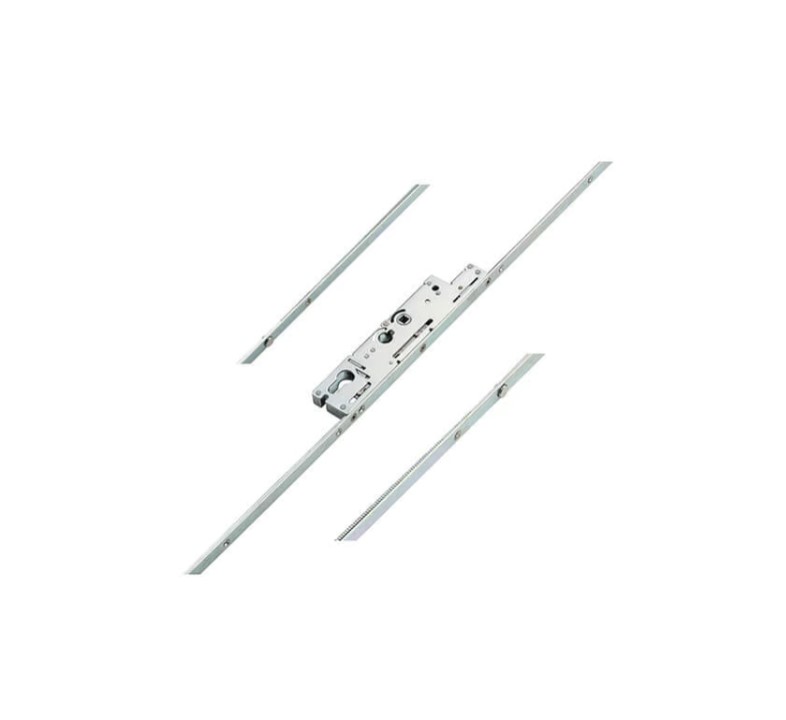

XL Lift Lever Passive Lock

This Fullex Passive multipoint door lock features no locking points and is suitable for the passive door on a pair of French doors.

The XL is Fullex’s newest and most secure lock.

The passive door version features attachments for top and bottom shootbolts.

Passive locks are fitted to the secondary (or passive) door on a pair of French doors. They are used in conjunction with the primary lock, which is a normal multipoint door lock, fitted to the main door. Locking is achieved by shoot bolts which secure the secondary door leaf to the frame when the door is locked.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for Fullex Passive multipoint door locks, including keeps, spindles, handles and accessories.

Latch Reversal: Not applicable as this passive door lock is unhanded and does not feature a latch.

You may find this lock used as an UPVC door lock or an aluminium door lock.
