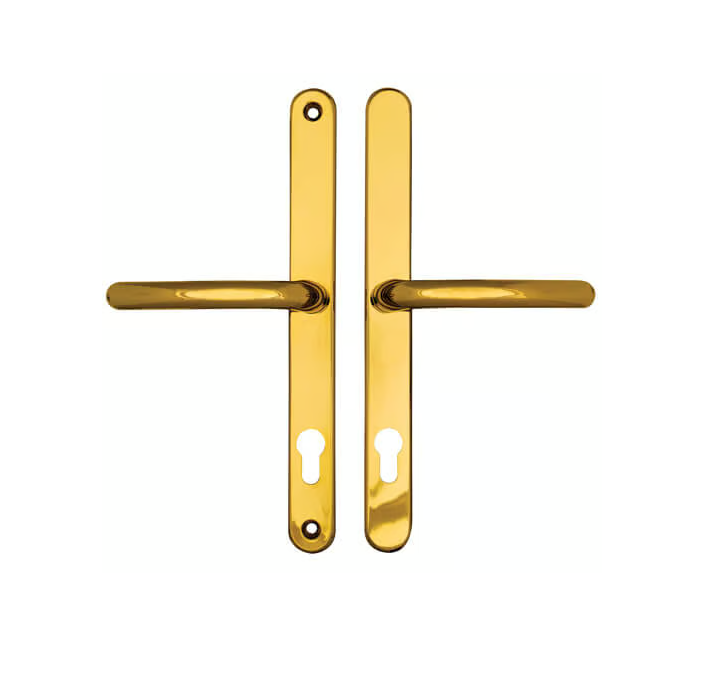

Universal Lever Lever UPVC Multipoint Door Handles - 92mm PZ Sprung 265mm Screw Centres

Universal Lever Lever UPVC Multipoint Door Handles - 92mm PZ Sprung 265mm Screw Centres - Image 2

Universal Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 265mm Screw Centres

SKU: N/A Category: Lever Lever Brand: Fab and Fix

Price range: £55.00 through £88.00

Sprung
Length: 296mm
Width: 32mm
Centres (PZ): 92mm
Screw Centres: 265mm
Base of euro to bottom screw: 30mm
Top screw to spindle: 118mm
PAS.24
Secured by Design
Supplied with spindles and screws
Supplied as a pair
Non-handed
Polybagged

Finish

Clear

These extra large universal Fab & Fix handles have sprung 92pz internal & external levers. With a backplate of 296mm x 32mm they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.

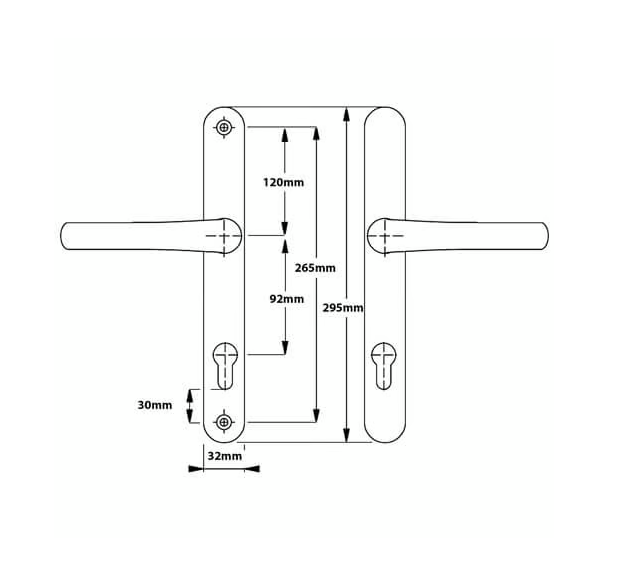

The distance between the fixing screws is 265mm with the bottom screw positioned 30mm below the euro profile cut-out.

They are supplied as a pair complete with fixings consisting of spindle & 2 colour co-ordinated screws.
