Pro Secure TS007 2* Lever Moveable Pad UPVC Multipoint Door Handles - 92/62mm PZ Sprung 212mm Screw Centres

Pro Secure TS007 2* Lever Moveable Pad UPVC Multipoint Door Handles - 92/62mm PZ Sprung 212mm Screw Centres - Image 2

Pro Secure TS007 2* Lever Moveable Pad UPVC Multipoint Door Handles – 92/62mm PZ Sprung 212mm Screw Centres

SKU: 0502 Category: Lever Moveable Pad Brand: MILA

Price range: £78.00 through £96.00

Sprung

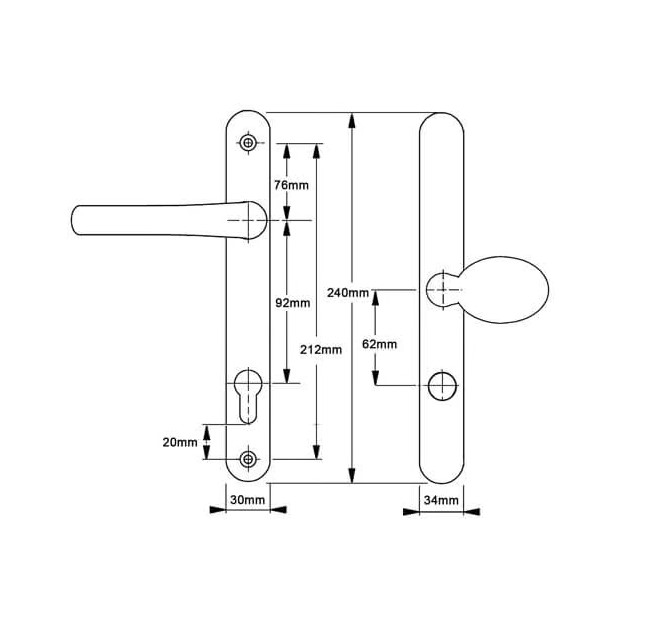

Length: 240mm
Width: 35mm (external), 32mm (internal)
Centres (PZ): 92mm / 62mm
Screw centres: 212mm
Base of euro to bottom screw: 20mm
Top screw to spindle: 105mm (pad), 75mm (lever)
PAS.24
TS007 2*
Supplied with spindle & screws
Supplied as a pair
Non-handed
Boxed

Finish

Clear

The Mila ProSecure door handle range has been successfully tested to TS007:2012 and has achieved BSI’s two star Kitemark accreditation. The range has also been independently tested at the UKAS accredited Mila Test Centre, Exova Warrington and British Standards Institute to the operational reliability requirements of PAS 023, the enhanced security requirements of PAS 024, achieved the salt spray test requirements of BS EN 1670 achieving grade 5 480 hours, and meets the Official Police Preferred Specification requirements of Secured by Design.

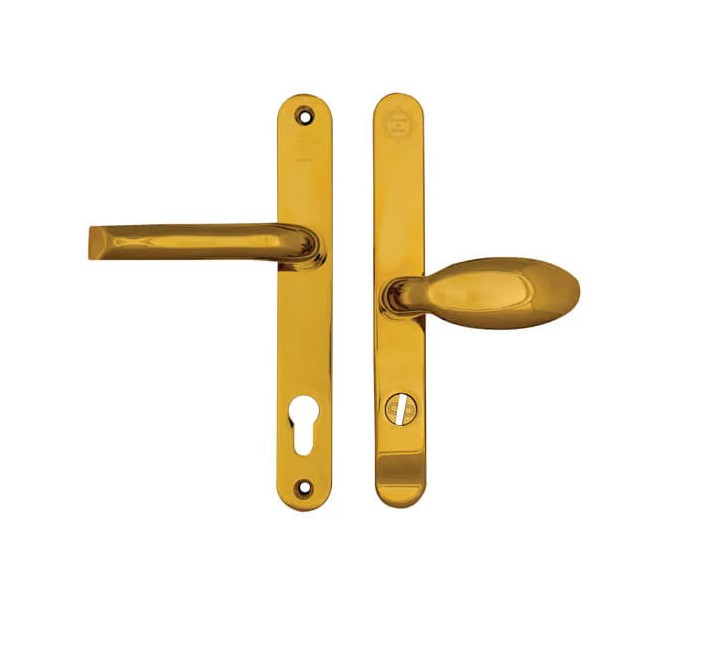

These handles from the ProSecure range have a sprung 92pz internal lever handle and a 62pz external moveable pad. With a backplate length of 240mm and 35mm wide they are available in various finishes.

The distance between the fixing screws is 212mm with the bottom screw positioned 20mm below the euro profile cut-out.

They are supplied as a pair complete with fixings consisting of 2 spindles and 2 pairs of colour co-ordinated screws of differing lengths to suit various door profiles.
