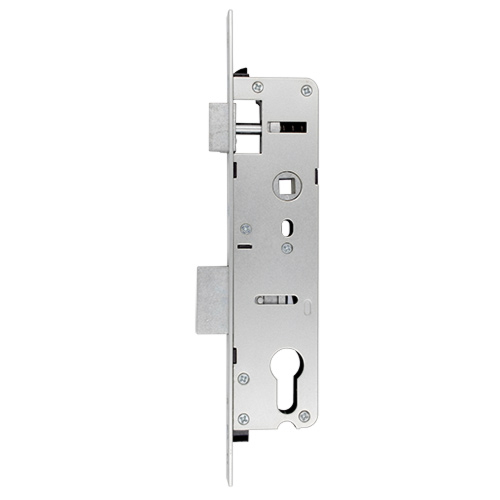

Overnight Lock – Lift Lever – 16mm Faceplate

The TSS Overnight Lock is a competitively priced solution to securing properties overnight whilst a replacement full-length multipoint is acquired.

Available in 30mm, 35mm & 45mm Backsets with 92mm PZ (centres), Sash Lock Operation

For a contract Double Spindle Overnight Lock use code – TSSOVN45DS or TSSOVN35DS

Latch Reversal:

30 & 35mm Backsets:

1. Unscrew the Screw located on the back of the Lock Case parallel to the Latch
2. Then push the latch into the lock case so it sits behind the faceplate and rotate.
3. Once you have reversed the latch, allow it to pop out into its original position in front of the faceplate then insert and tighten the screw.

45mm Backsets:

1. On the lock case parallel to the latch you with find a slightly curved cut out, locate this and with a flat-head screwdriver slide the pin in this cut out toward the latch.
2. This will push the latch forward allowing you to rotate the latch 180 degrees.
3. Push the latch into the gearbox and slide the pin in step 1 to its original position.
