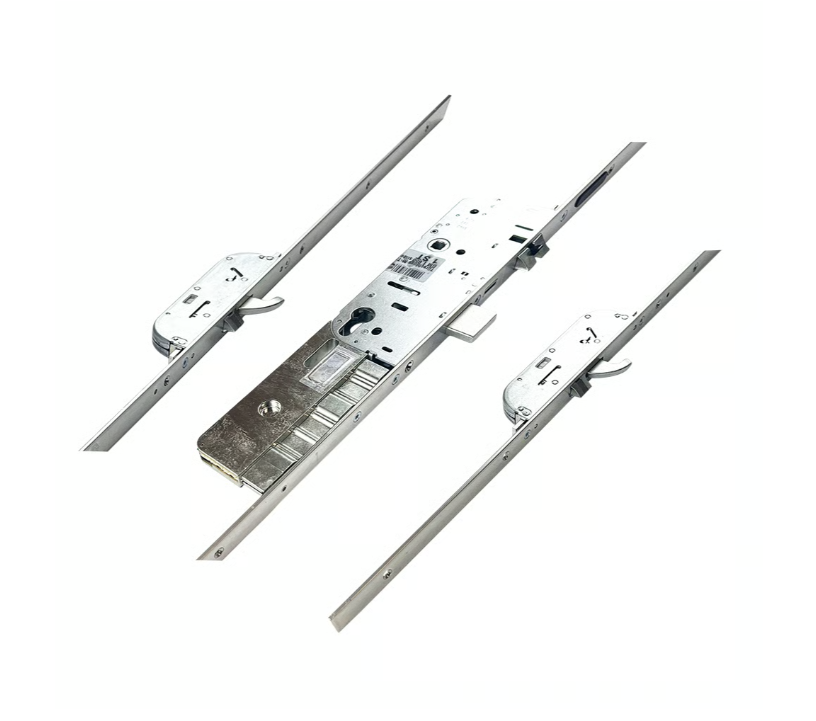

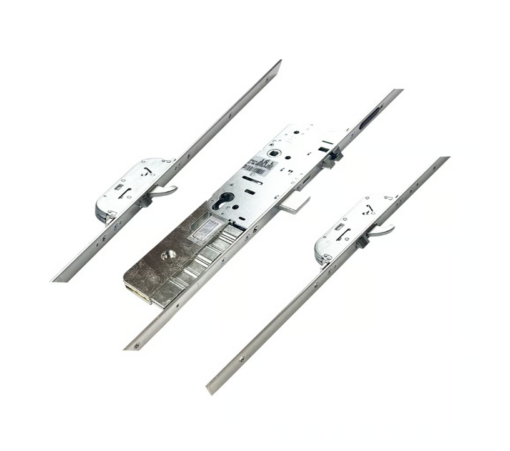

M-TS Latch & Deadbolt 2 Hooks 2 Anti Lift Bolts Flat 24mm Faceplate Electric Multipoint Door Lock

The Maco M-TS Electric Multipoint Door Lock is a high security, electronically operated locking system designed to offer reliable performance for modern entrance doors. This model features 2 Hooks, 2 Anti Lift Bolts, 1 Deadbolt, and 1 Latch, all mounted on a 24mm flat faceplate with square ends. With an overall height of 2200mm and 35mm backset, it is suitable for PVC, composite, and timber door installations requiring powered access control.

This M-TS lock combines mechanical strength with electric latch retraction, allowing integration with intercoms, access control systems, or smart home setups. The lock retains full mechanical locking through its hooks, anti‑lift bolts, and central deadbolt, ensuring complete security even during power loss.

This M-TS lock can be identified by its single piece strip, flat 24mm square end faceplate, and the distinct arrangement of hooks and anti-lift bolts. The system uses a single 8mm spindle with non-handed operation, making it suitable for both left and right opening doors without modification.

Locking Points & Security Features

This M-TS model includes:

2 Uni directional Hooks. These engage firmly into their keeps to compress the door against the frame and resist forced separation.

2 Anti Lift Bolts positioned near the hooks, they prevent vertical lifting or jamming of the door.

1 Central Deadbolt & Latch. The deadbolt provides the primary mechanical lock, while the latch retracts electrically for hands free or remote entry.

Please note anti lift bolts require specific compatible keeps due to their proximity to the hooks, offering improved protection against physical attack.
