London Lever Lever UPVC Multipoint Door Handles – 70mm PZ Unsprung 180mm Screw Centres

SKU: HOP70 Category: Lever Lever Brand: Hoppe

Price range: £37.00 through £47.00

Unprung
Length: 205mm
Width: 28mm
Centres (PZ): 70mm
Screw centres: 180mm
Base of euro to bottom screw: 21mm
Top screw to spindle: 65mm
Supplied with 7mm spindle & screws
Supplied as a pair
Non-handed
Polybagged

Finish

Clear

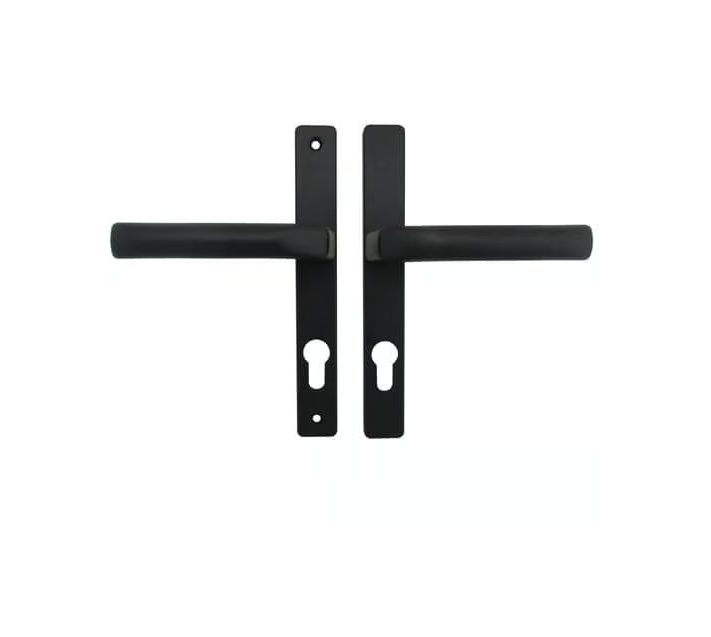

These Hoppe handles from the London range have unsprung 70pz internal & external levers. With a backplate size of 205mm x 28mm they are available in various finishes and are commonly used with GU Ferco multipoint locks with a 7mm follower. These handles are not compatible with spring cassettes.

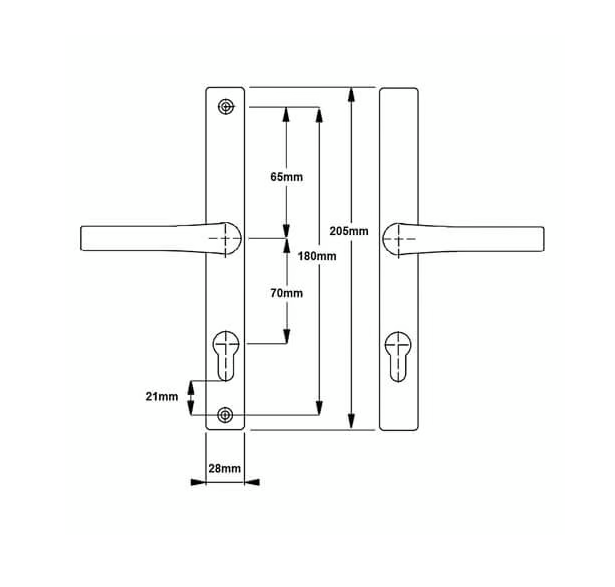

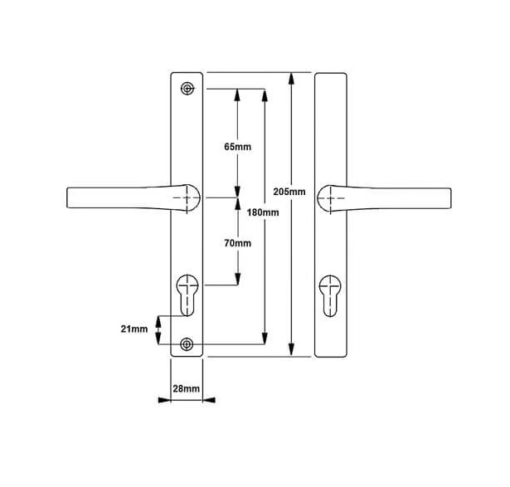

The distance between the fixing screws is 180mm with the bottom screw positioned 21mm below the euro profile cut-out.

They are supplied as a pair complete with a 7mm square spindle & 2 colour co-ordinated bolt through M4 screws to suit door thickness 58-72mm.
