Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 240mm Screw Centres

SKU: HOP8320 Category: Lever Lever Brand: Hoppe

Price range: £44.00 through £56.00

Sprung
Type (3620N) backplate

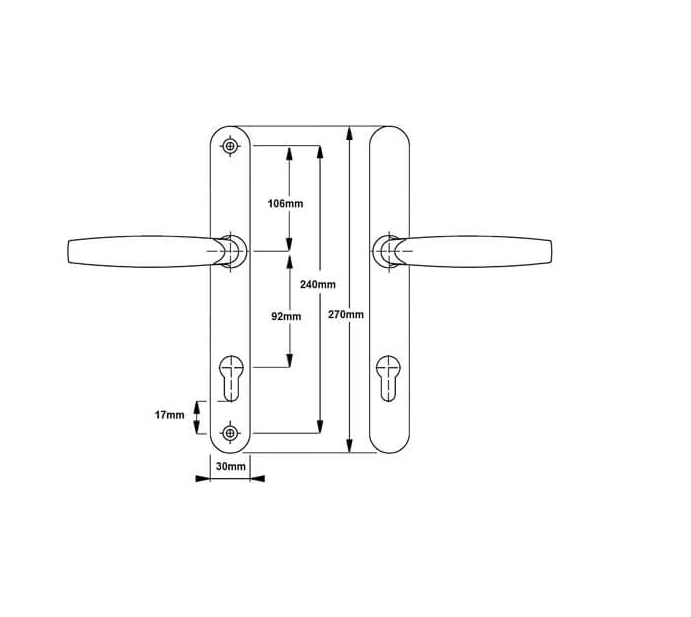

Length: 270mm
Width: 30mm
Centres (PZ): 92mm
Screw centres: 240mm
Base of euro to bottom screw: 17mm
Top screw to spindle: 106mm
Supplied with spindle & screws
Supplied as a pair
Non-handed
Polybagged

Finish

Clear

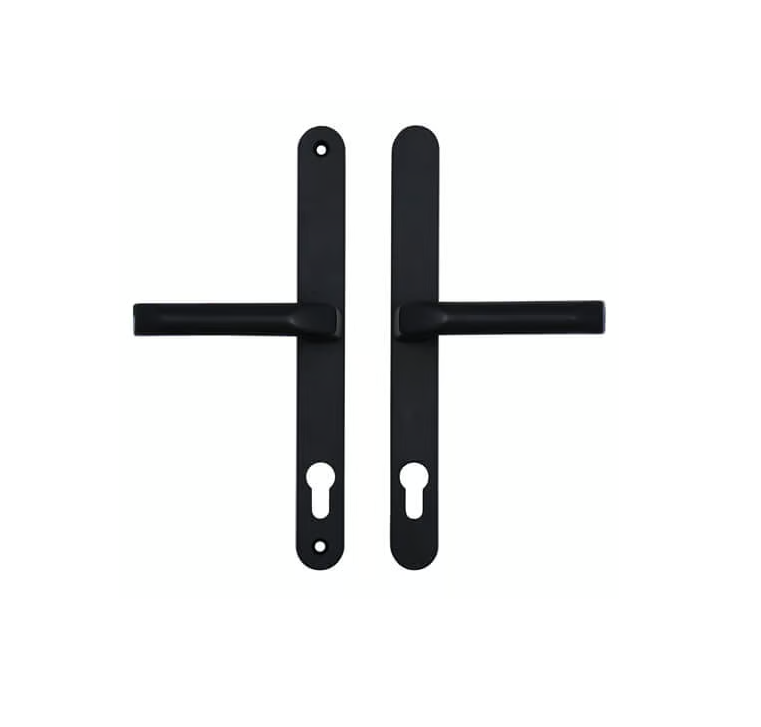

These Hoppe handles from the London range have sprung 92pz internal & external levers. With a backplate size of 270mm x 30mm they are available in various finishes.

The distance between the fixing screws is 240mm with the bottom screw positioned 17mm below the euro profile cut-out.

They are supplied as a pair complete with spring cassettes, an 8mm square spindle & 2 colour co-ordinated bolt through M5 screws to suit door thickness 64-73mm.
